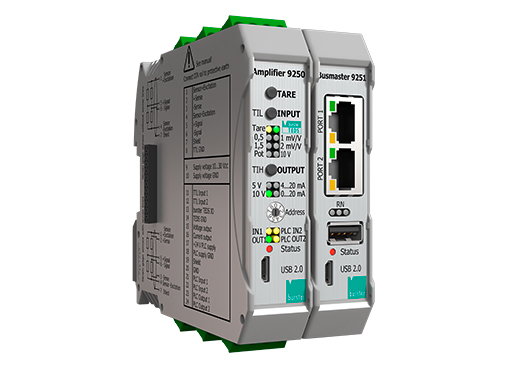

9250/9251信号放大器9250和总线控制器9251

未来的自动化世界提出了诸如网络,速度,准确性,集成性和成本效益等挑战。

出色的系统,最多8个模块+总线控制器

  • Features

    • 随时可以与任何制造商的传感器配合使用
    • 超方便的快速按钮设置
    • burster TEDS技术,可自动识别所连接的传感器
    • 通过总线控制器可扩展的现场总线接口
    • 支持基于以太网的现场总线,如PROFINET,EtherCAT,EtherNet/IP、I/O接口等
    • 通过总线控制器同步输出多达8个测量通道
    • 完整的测量数据导出工具
    • 适用于力,压力,位移,转速和扭矩测量,包括组合测量
    • 每个9250放大器都可通过按钮或I/O信号清零
    • 每个放大器模块最多选配两个实时信号/限位开关
    • 通过USB端口使用DigiVision PC软件进行多功能配置
    • 高测量精度
    • 节省空间的控制柜安装设计
    • 可调截止频率
  • Description

    The new 9250/9251 amplifier generation unites all the features that make modern measurement data acquisition actually possible for the first time. Network-compatible, high-precision, user-friendly, smart and versatile: the combined system of amplifier module and bus controller can be integrated into any existing setup. The amplifier 9250 takes signals exactly to the point where they can be combined, monitored and linked efficiently to other data. The fieldbus interfaces give you flexibility, speed and perfect connections, and save you time, money and other resources when integrating your measurement setup with existing systems. Automatic sensor recognition due to burster TEDS lets you play absolutely safe, protecting you from setting incorrect parameters.

    The broad supply voltage range permits operation on standard power supplies used in switch gear cabinets. A highly accurate precision amplifier performs the amplification of the sensor signal being applied. The latest microprocessor technology made a 24 bit AD conversion with high accuracy possible. The sensor excitation is performed by the amplifier module itself so that no additional voltage source is required. It can also be set in steps of 2.5 V, 5 V, 10 V using configuration software DigiVision. The maximum feed current of 40 mA permits parallel connection of several strain gages sensors, e.g. for the addition of measurement variables. Measurement errors brought about by varying line lengths or due to temperature fluctuations effecting the sensor cable are avoided by having probe lines measuring the actual feed voltage directly on site at the sensor itself (6 wire technology). The cut-off frequency of the amplifier can be switched between 10 Hz and 1 kHz
